Snapshots can be taken of the image data display screen.
4.6.1 Capture the entire current display image
This section describes how to create a new CASE.

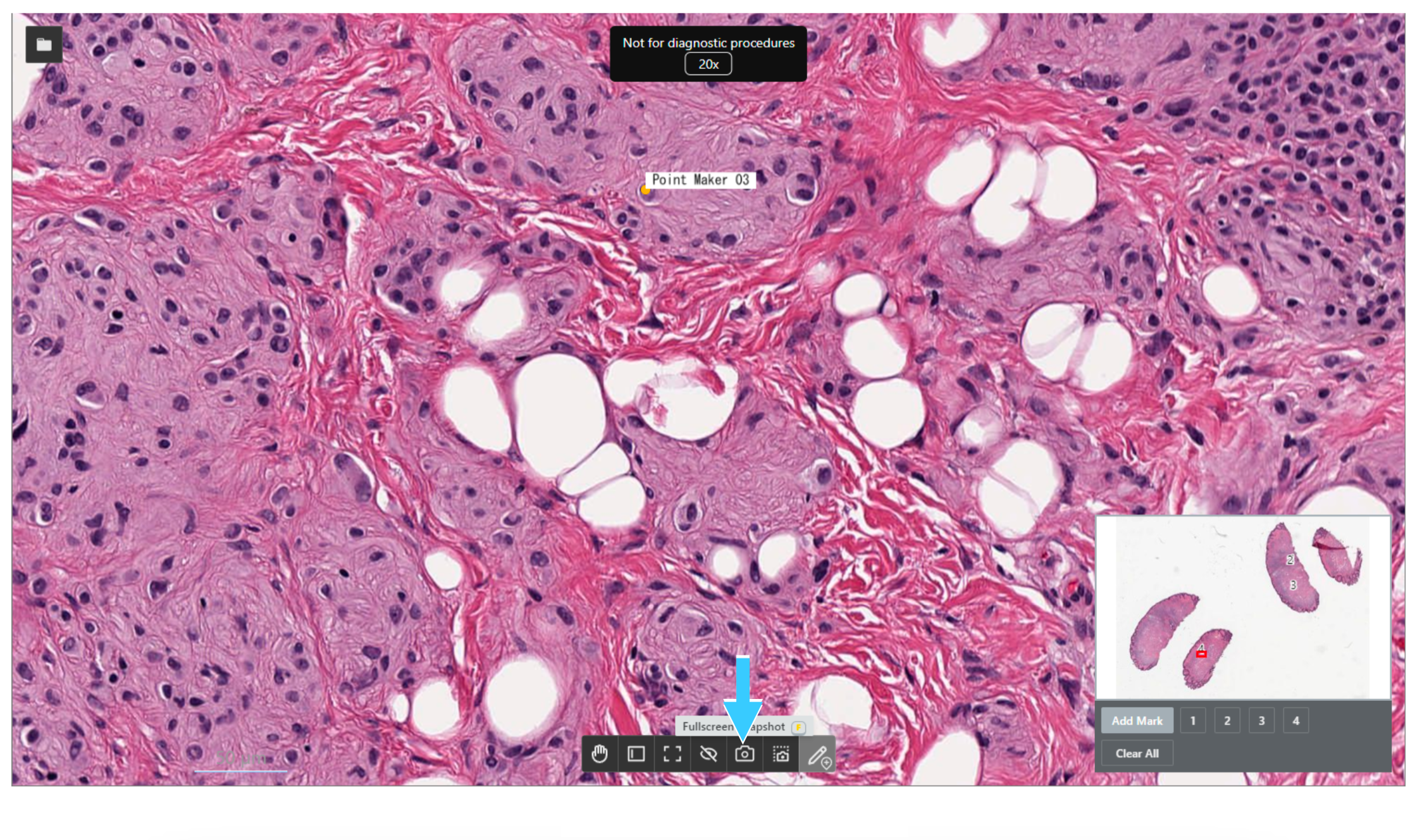

1 The field of view you want to shoot is displayed and is in the controls at the bottom of the screen.

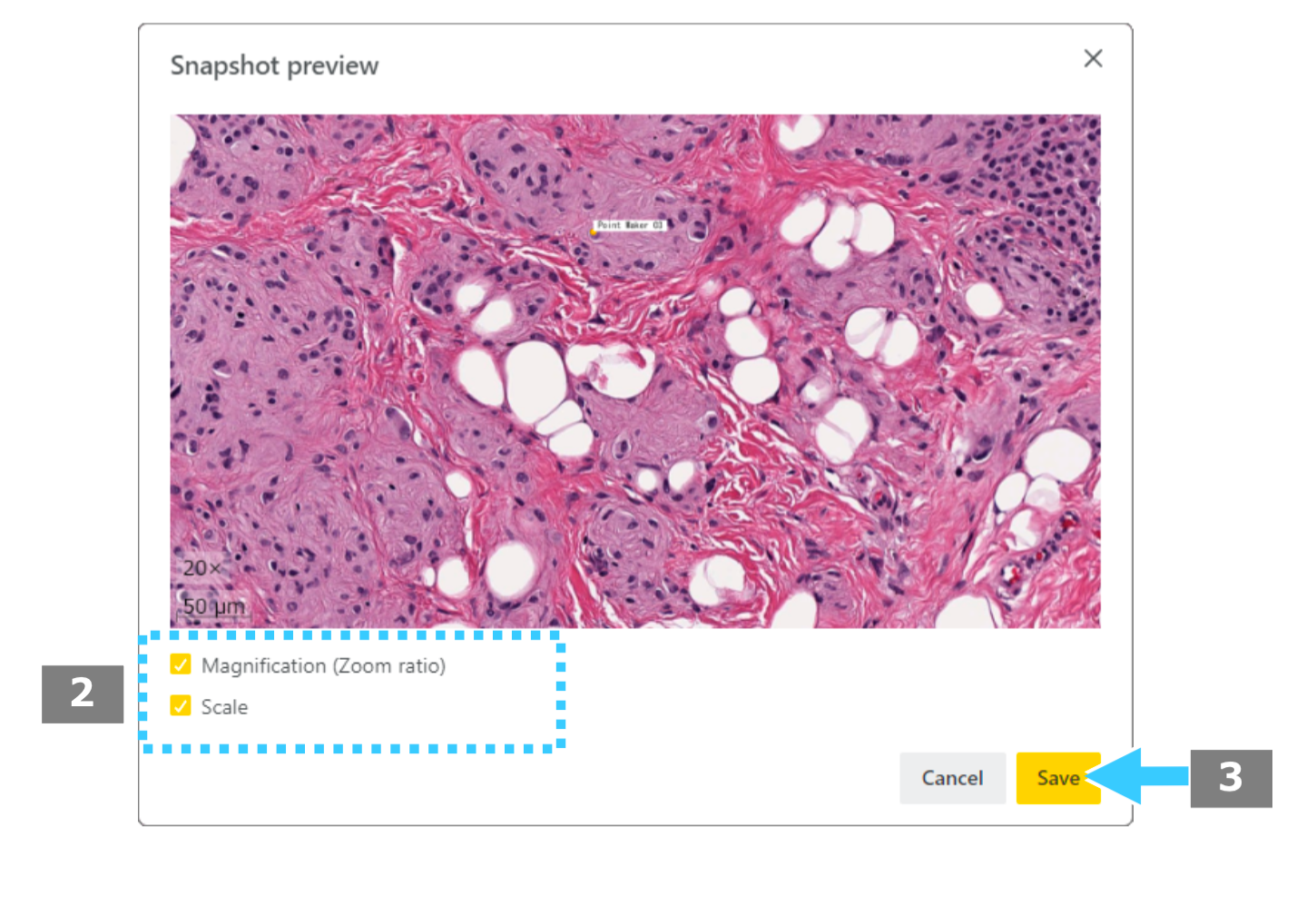

The Snapshot preview screen appears.
2 On the "Snapshot preview" screen, review the displays to be included in the image and uncheck those that are not needed.
3 Click the "Save" button.
The PNG image is saved locally.
4.6.2 Select an area and shoot
1 Display the field of view you wish to capture and click the Screen Snapshot button in the controls at the bottom of the screen.
2 Select the area where the image was taken.

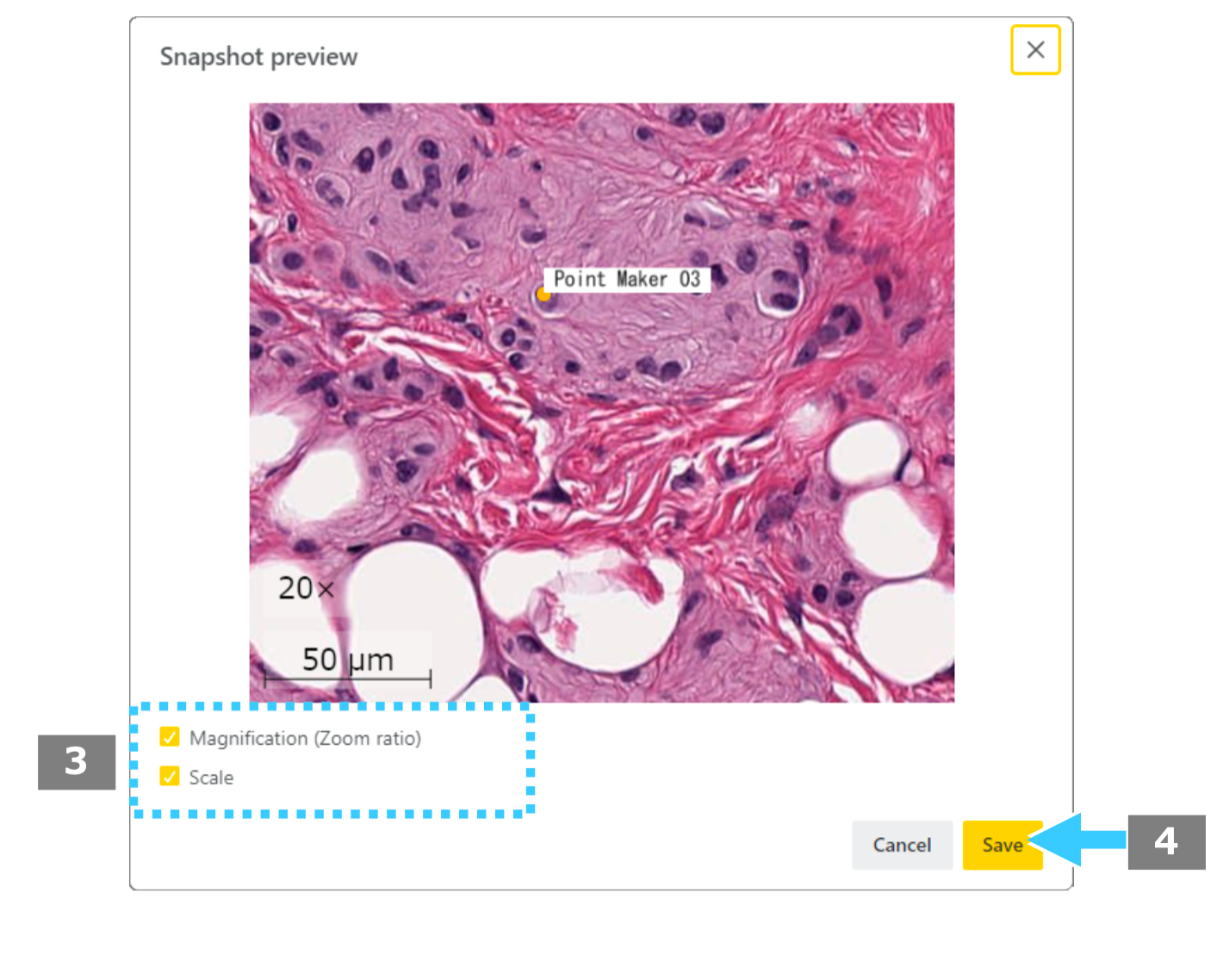

3 On the "Snapshot preview" screen, review the displays to be included in the image and uncheck those that are not needed.
4 Click the "Save" button.
The PNG image will be saved on the local PC.
