Up to four images can be displayed at the same time.
4.4.1 Procedure for Simultaneous Viewing
Up to four images can be displayed at the same time.

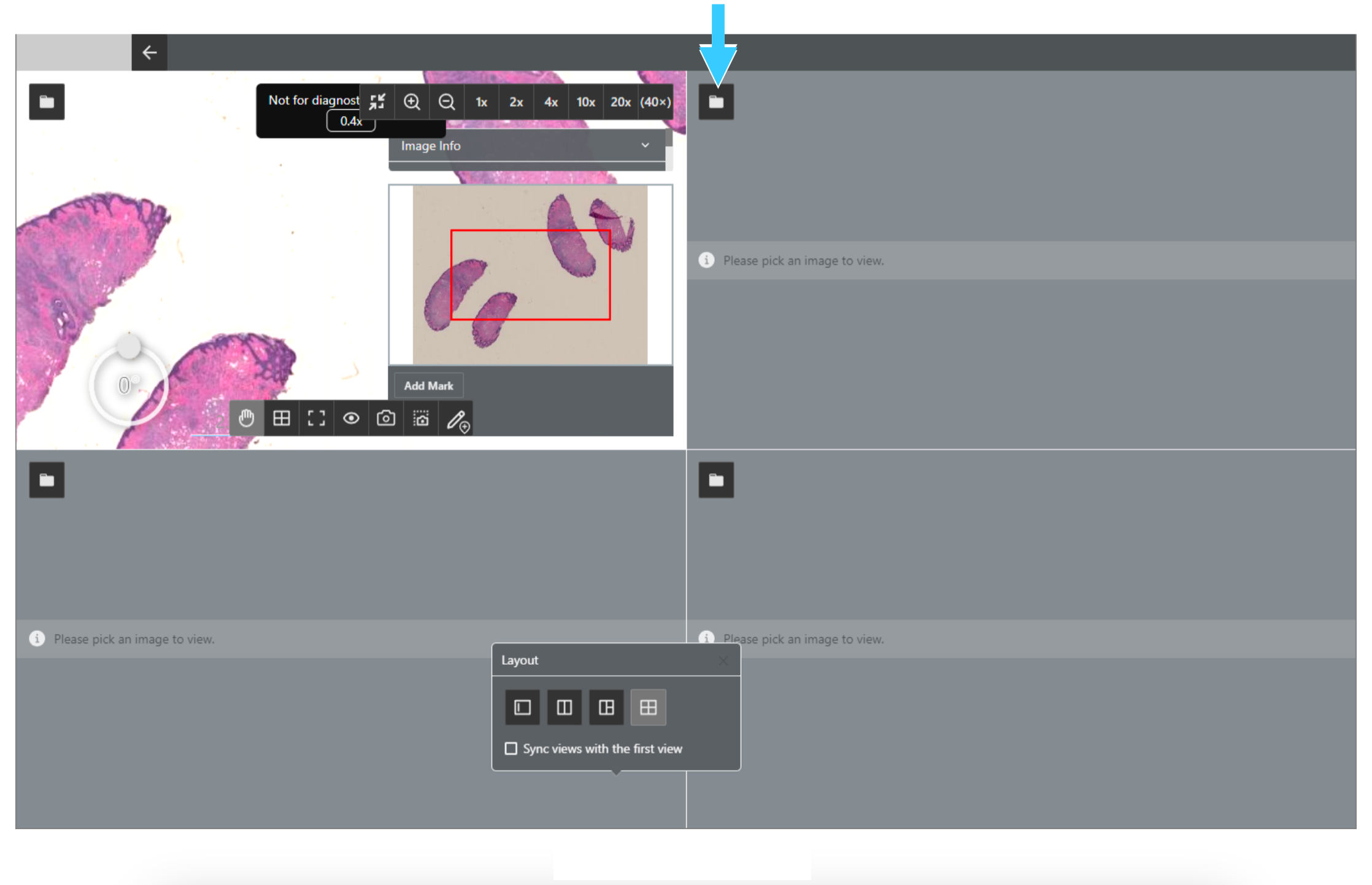

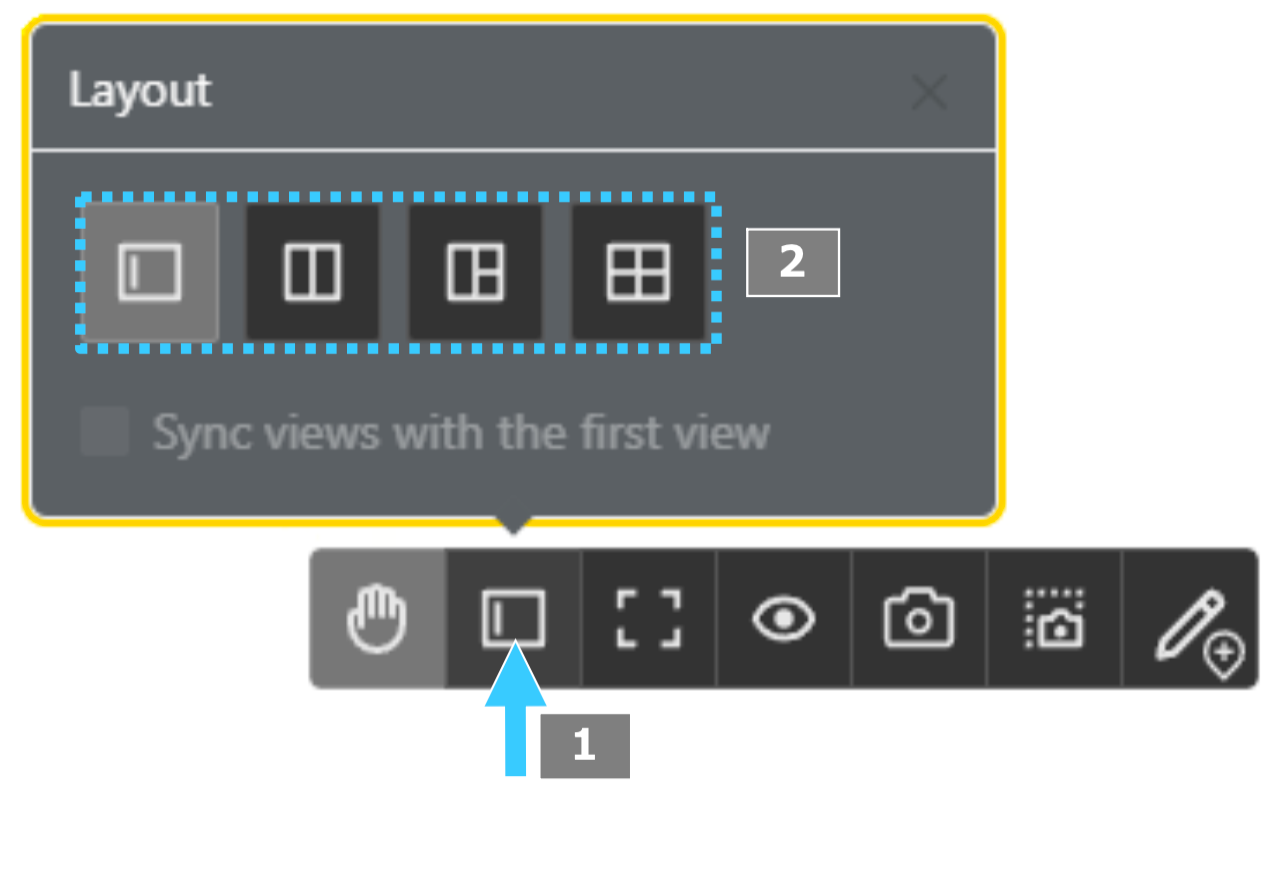

1 Click the "Layout" button at the bottom of the screen to display the "Layout" menu.
2 From the "Layout" menu, select the number of sheets to be displayed simultaneously.

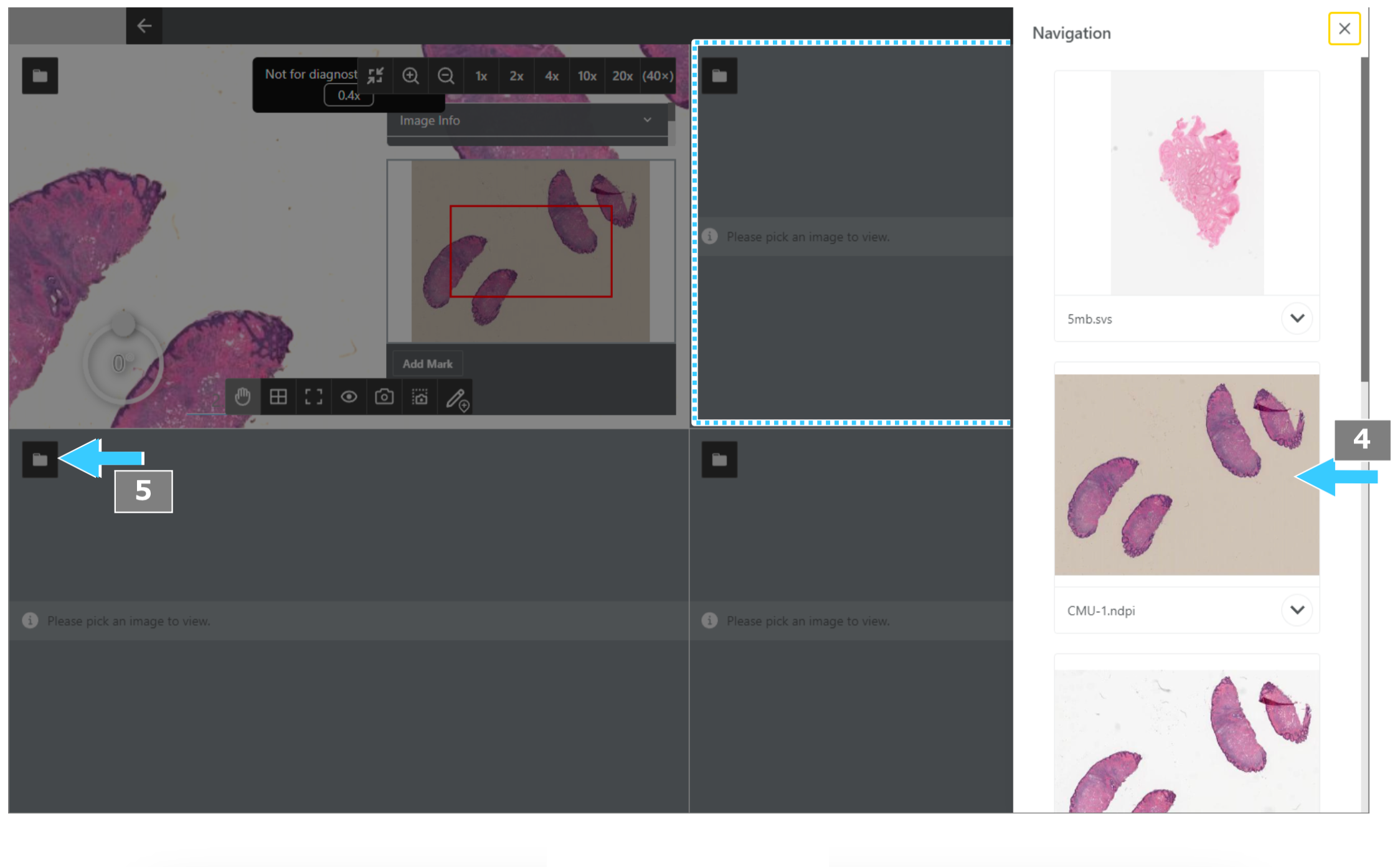

3 Click
button in the upper left corner of the second screen.
The Navigation panel appears on the right.
4 In the Navigation panel, select the image data to be displayed on the second screen.

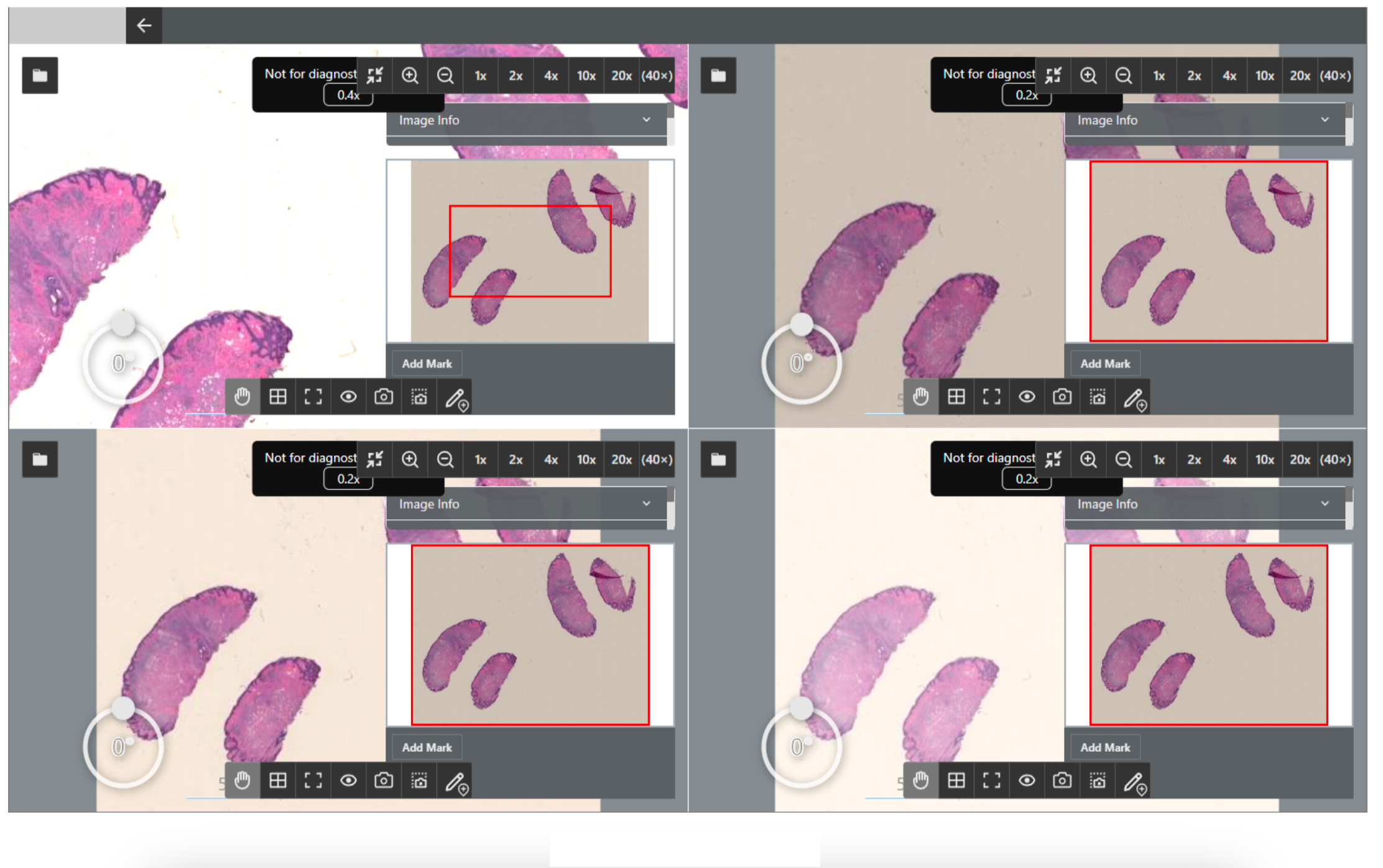

5 Repeat steps 3 through 4 for the third and subsequent sheets.
4.4.2 synchronous mode

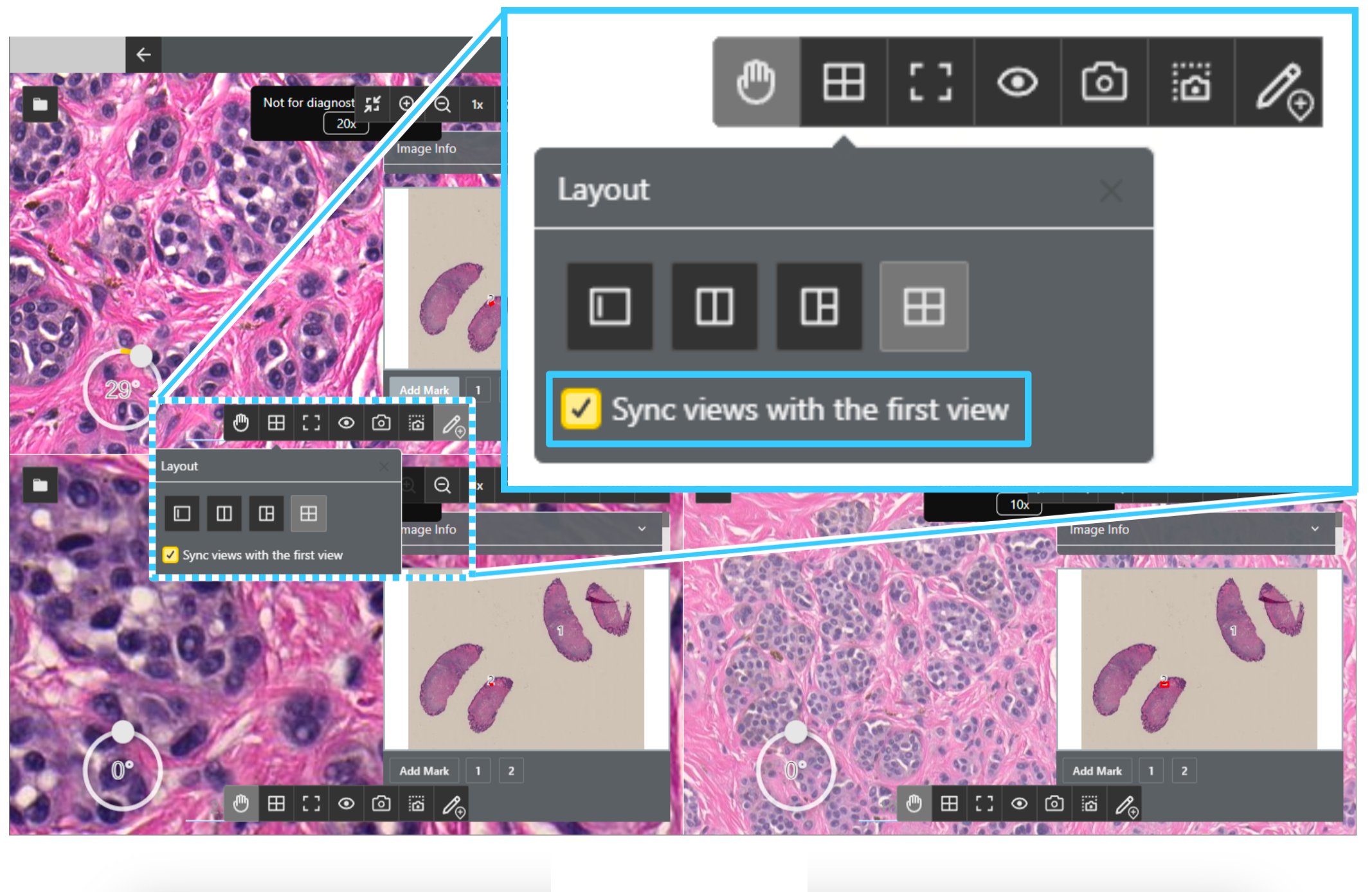

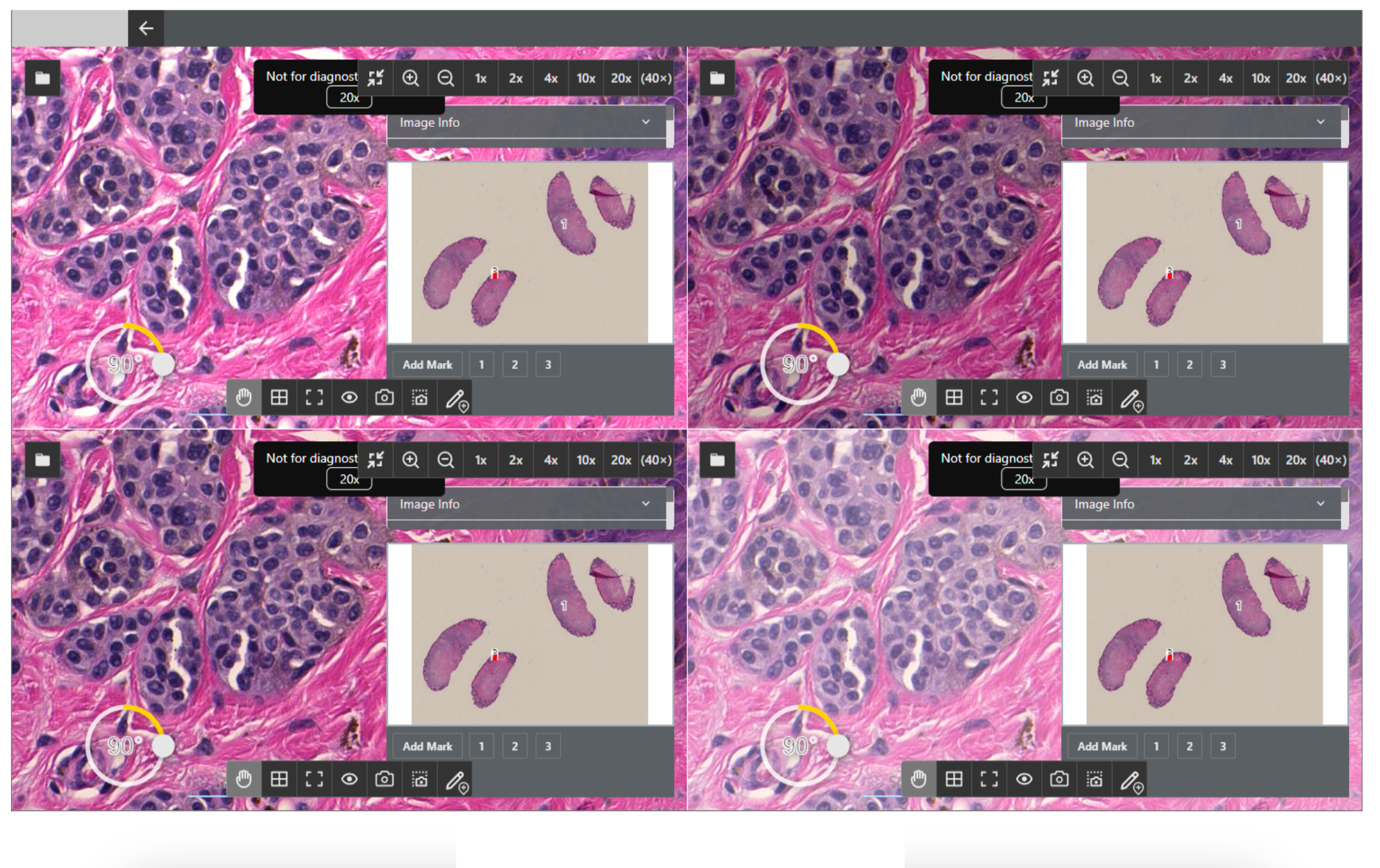

When multiple images are being viewed at the same time, if the "Sync views with the first view" checkbox is checked, the other images will follow the actions taken on the first image.
Supplement
Synchronized operation only applies to marker drawing and screen display adjustments. It does not apply to color tone adjustment.
Supplement
Even while in Synchro mode, if you manipulate the second or later image, it will be applied only to that image.
